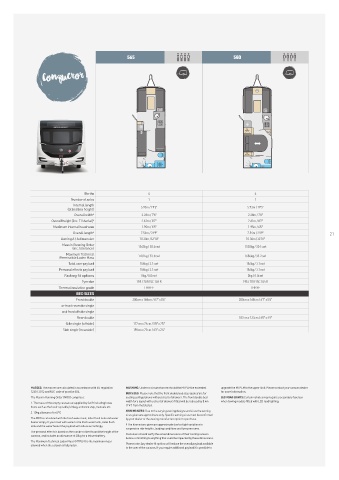

Page 21 - 2022_Conqueror

565 580

TV

TV
TV TV

Berths 4 4
Number of axles 1 1
Internal length 5.93m / 19’5” 5.93m / 19’5”
(at bed box height)
Overall width # 2.28m / 7’6’’ 2.28m / 7’6’’
Overall height (inc. TV Aerial) # 2.61m / 8’7” 2.61m / 8’7”
Maximum internal headroom 1.95m / 6’5” 1.95m / 6’5”
Overall length # 7.54m / 24’9” 7.54m / 24’9” 21
Awning A / A dimension 10.30m /33’10” 10.30m /33’10”
Mass in Running Order 1545kg / 30.4cwt 1530kg / 30.1cwt
(inc. tolerance)
Maximum Technical
Permissible Laden Mass 1701kg / 33.5cwt 1686kg / 33.2cwt
Total user payload 156kg / 3.1cwt 156kg / 3.1cwt
Personal effects payload 156kg / 3.1cwt 156kg / 3.1cwt
Factory fit options 0kg / 0.0cwt 0kg / 0.0cwt
Tyre size 195 / 70 R15C 104 R 195 / 70 R15C 104 R
Thermal insulation grade THREE THREE
BED SIZES
Front double 200cm x 168cm / 6’7” x 5’6” 200cm x 168cm / 6’7” x 5’6”
or front nearside single
and front offside single
Rear double 182cm x 133cm / 6’0” x 4’4”
Side single (offside) 172cm x 74cm / 5’8” x 2’5”
Side single (nearside) 190cm x 73cm / 6’3” x 2’4”

MASSES: The masses are calculated in accordance with EU regulation WARNING: Under no circumstances should the MTPLM be exceeded. upgrade the MTPLM to the upper limit. Please contact your caravan dealer
1230 / 2012 and NCC code of practice 304. BED SIZES: Please note that the front double bed sizes quoted are for for more information.
The Mass in Running Order (MRO) comprises: seating configurations without chest of drawers. The front double bed LED ROAD LIGHTS: Certain vehicles may require a secondary fuse box
width for a layout with a chest of drawers fitted will be reduced by 0.4m when towing models fitted with LED road lighting.
1. The mass of the empty caravan as supplied by Swift including loose
items such as the hook-up cable, kit bag, entrance step, manuals etc. (1’4”) from that stated.
AWNING SIZES: Due to the varying awning designs and sizes the awning
2. 10kg allowance for LPG
sizes given are approximate only. Specific awning sizes must be confirmed
The MRO is calculated with the fresh water tank, toilet flush tank and water by your dealer or the awning manufacturer prior to purchase.
heater empty. If you travel with water in the fresh water tank, toilet flush
tank and the water heater the payload will reduce accordingly. # The dimensions given are approximate due to slight variations in
suspension ride heights, loading conditions and tyre pressures.
The personal effects is based on the number of berths and the length of the
caravan, and includes an allowance of 20kg for a leisure battery. Customers should verify the actual dimensions of their touring caravan
before committing to anything that could be impacted by these dimensions.
The Maximum Technical Laden Mass (MTPLM) is the maximum mass
allowed when the caravan is fully laden. Please note: Any dealer fit options will reduce the overall payload available
to the user of the caravan. If you require additional payload it is possible to
